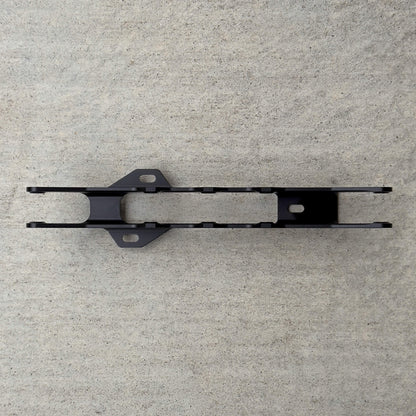

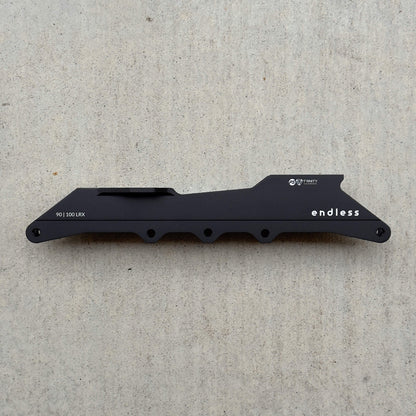

Endless 90 LRX Trinity Frame
Endless 90 LRX Trinity Frame
Out of stock
This frame requires a TRINITY boot.
This frame requires a TRINITY boot.
It is NOT compatible with 165/180 or UFS boots. Not sure? Click here.
Couldn't load pickup availability
Mercury finish info
Mercury finish info
The mirror finish on Mercury frames can reveal fingerprints, tiny scratches, marks, and nicks. During normal handling and skating the frame may get scratched. Wiping dust and debris off of the frame can also put micro-scratches in the finish. Brand new Mercury frames may have micro-scratches from handling during manufacturing. There is no warranty on the finish of this product.
Setup guide
Setup guide
Design protection / Patents
Design protection / Patents
This design of this frame may be protected by registered or pending design rights in one or more regions.
Share
The Endless 90 LRX Frame is an extended ultra-low, multi-setup frame specifically designed for skaters with larger foot sizes using TRINITY compatible freeride skates. We took our ultra-low 90 LR (Low Ride) Frame and extended it by 15 mm. The extra wheelbase length is optimized for boot sizes 44 and up. Endless is proud to offer the first urban TRINITY frame for large-footed skaters seeking a big wheel setup that is properly suited for the size of their feet. We believe nobody should have to skate comically short frames on a size 47 boot, or be forced into a larger wheel size just to have a wheelbase that provides adequate stability.
This frame has a lower ride height than the standard Endless 90 TRINITY Frame when used with the 4-wheel setup, providing the absolute lowest 4x90 TRINITY setup on the market. Although it lacks the 3x110 flat setup of its standard counterpart, there is a 3x100 setup which hits a sweet spot for acceleration, speed, and weight and features our "Enhanced Flat" setup that feels more maneuverable than flat, without feeling rockered. The two setups are fine-tuned for control and agility in urban environments.
Features
- Multiple setups: 4x90, 3x100
- Balanced Rocker for 4-wheel setup
- Enhanced Flat configuration for 3-wheel setup
- Has a very subtle micro-rocker - feels like a worn-in flat setup
- Compatible with bullet profile wheels only
- Recommended for all skill levels
- Recommended for boot sizes 42 (270 mm foot length) and above, and specifically for sizes 44-48
Specs
- Mounting: TRINITY 3-point
- Boot compatibility: Some of the Powerslide fitness skates may have very small clearances when using brand new 100 mm wheels
- Wheelbase: 291 mm
- Brake compatibility:
- 4x90: Powerslide Urban Brake Size L (908058/3), Powerslide Road Hog Speed Brake (907005),
- 3x100: Powerslide Megacruiser Brake (907029) - may require modification
- One frame set includes: 2 frames and 8 axles
- CNC-machined from 6061-T6 aluminum
- Weight = 277 grams, without spacers and axles
Manufactured under license from Powerslide under patent #102015017092.9.
