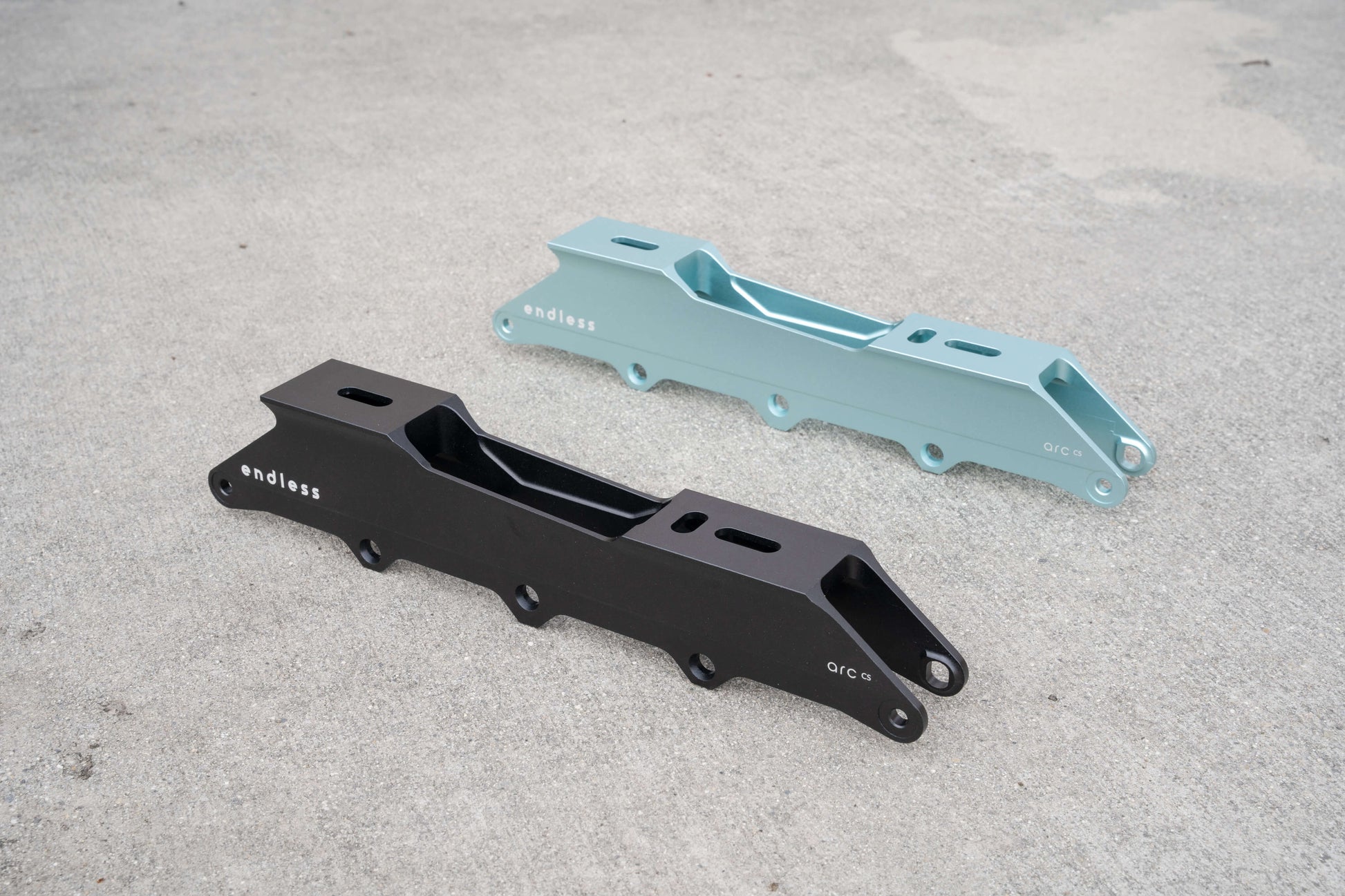

Endless Arc CS Frame

Endless Arc CS Frame

Regular price $259.00 USD
Regular price Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

This frame requires a 165 Raised Heel boot.

It is NOT compatible with UFS or Powerslide Trinity boots. Not sure? Click here.

The Endless Arc CS 165 Frame is an adjustable rocker, 5-wheel Compact Scale frame specifically designed for "urban figure skating", and for smaller-footed wizard skaters seeking an appropriately sized experience.  Through meticulous development and testing we have engineered a frame that we believe delivers an innovative level of 5-wheel performance for all 165 mount boots.  An exceptionally rigid structural design and novel wheel configuration brings uncompromised levels of responsiveness, control, and acceleration that enhance the execution of moves and open up limitless skating expression...and most importantly, fun!

For the best skating performance and movement tempo, our 5-wheel frames should be chosen based on boot size as noted on the Features tab.

Features
  • Wheel configuration: 3x 76 mm (wheels 1, 3, 5) + 2x 68 mm (wheels 2, 4)
    • For the best experience do NOT mix round and bullet wheel profiles.  Matched sets of Endless or Street Invader wheels can be purchased in our store.
  • Multi-position Arc Rocker
    • Enhanced levels of rocker possible using optional Arc Deluxe Rocker Axles (silver), or black Rocker Axles in "up" setting
    • Four (4) rocker positions of outer 76 mm wheels for performance tuning
    • Urban figure skate setup: Silver Axle in front, Black Axle down in back
    • Optimized for next-level responsiveness, speed, acceleration, and precise control of movement
      • Higher performing alternative to 5x72 options
      • Speed of 76 mm with ride height set by 68 mm wheels
    • Recommended for Intermediate and Advanced skill levels
    • Recommended for urban figure skating with boot sizes 35-44
    • Recommended for wizard skating with boot sizes 35-38
    • Mounting: 150, 165, 180 mm
      • Longitudinal mounting slots allow for optimized front-back alignment with all skate brands
      • For centered mounting on FR/Seba boots and Micro MT Plus: push frame forward (bolt sits towards rear of slot)
      • For centered mounting on Rollerblade or Adapt boots: push frame backwards (bolt sits towards middle of slot)
      • Lateral mounting slot allow for angled adjustment on 7-hole mounts only, like FR1/2/3.
      • Wheelbase: 292 mm
      • Pivot spacing: 73 mm
      • Brake compatibility: not recommended for use with a brake
      • One frame set includes: 2 frames and axle hardware
      • CNC-machined from 6061-T6 aluminum
      • Weight = 303 grams, without spacers and axles



      Check out the Arc CS Landing Page to learn more about the design.

      Check out the Arc CS Setup Guide for mounting and confirguation help.

      Shipping info

      New orders will ship in 3-5 business days when in stock. If out of stock in our store please check with our dealers who often have them available.

      Need help choosing a frame?

      Have a question?

      Check out our FAQ and Help page. We have an extensive knowledge base of help articles. You can also click the help icon in the lower right hand corner of this page.

      Pre-order info

      If this product is allowing pre-orders, visit this this link to learn about how our pre-orders work. We don't require any payment up front and only take payment when shipping.

      Frame Lock compatible

      This frame is compatible with our patent pending Frame Locks.

      Learn more

      Boot compatibility

      There are three primary mounting standards: 165 raised heel, UFS, and Trinity. It's important to know which mounting interface your boot has so that you can choose the correct Endless frame. These three mounting types are not interchangeable with one another. In other words you cannot fit a Trinity frame to a UFS boot, nor can you fit a UFS frame to a 165 raised heel boot.

      Learn more

      Brake compatibility

      Brakes are not compatible with our Arc 5-wheel frames.

      Setup guide

      View full details

      Need help choosing a frame?

      Take our frame quiz to get a personalized recommendation based on your foot size, skill level, and skating style and preferences.

      FRAME QUIZ

      EXPAND HEADINGS TO LEARN MORE

      What sets Endless apart

      Dual setup design

      We have engineered our frames to be not only lightweight and strong, but also to be versatile and fun. Multiple setup options allow one frame to suit a variety of skating styles. Go from a maneuverable and zippy 4-wheel setup to a 3-wheel triskate cruiser in minutes.

      Balanced Rocker 4-wheel setup

      Balanced Rocker

      The 4-wheel setups on each frame feature our unique recipe of rockering that balances front-to-back stability with responsiveness and maneuverability. This greatly enhances what we like to call the "Whee!" Factor. And all those swively tricks you've been wanting to learn.

      Flat Triskate 3-wheel setup

      Flat Triskate

      The 3-wheel setups on each frame are configured flat for the best power transfer when cruising down a trail or commuting across the city. We have minimized the ride height for maximum stability. The triskate experience doesn't get more solid than this.

      For all skill levels

      Our frames are meant for skaters of all skill levels.  They immediately provide a more satisfying blading experience, especially for beginners, due to the low ride height, and ease of manueverability.  Turning becomes more intuitive.

      Vivid color

      All of our frames are available in multiple colorways to complement your personal style and make your setup pop. Every year we announce new high end custom color finishes.

      Brake compatible

      We want bladers of all skill levels to enjoy our frames so we designed them to be compatible with readily available Powerslide Urban Brakes.

      Time tested design

      The best designs require time. We meticulously refine our frame designs through a deliberate and long-term testing process involving fellow skaters across the globe. We iterate multiple times to optimize the performance and deliver an experience thoroughly vetted by experienced skaters. We don't believe in cutting corners or rushing products to market.

      Made to last

      Our frames are precision machined from 6061-T6.  The smooth outer surfaces cleanly cloak an internal structural design that optimizes strength and weight.  Wall thicknesses of 4 mm provide stiffness and durability.  The parts are bead blasted, anodized, and laser marked to achieve a beautiful finish that will last.
