Endless 90 ES mk1 Frame
Endless 90 ES mk1 Frame
In stock
This frame requires a 165 Raised Heel boot.
This frame requires a 165 Raised Heel boot.
It is NOT compatible with UFS or Powerslide Trinity boots. Not sure? Click here.
Couldn't load pickup availability

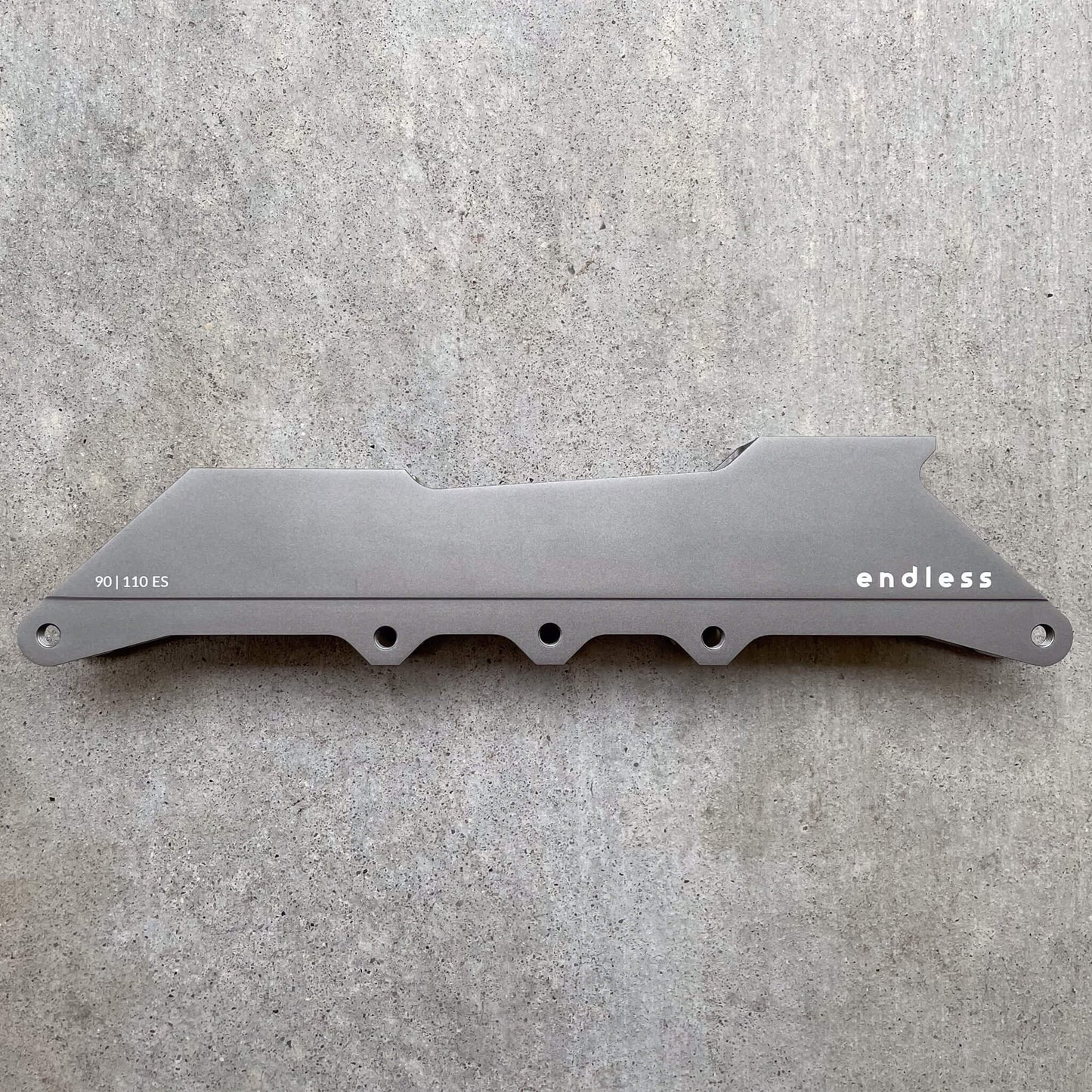

The Endless 90 ES mk1 Frame is a precision machined, multi-setup “Enhanced Stability” frame specifically designed for skaters with larger foot sizes using 165 mm compatible freeride skates. The extra wheelbase length is optimized for boot sizes 44 and up. Endless is proud to offer the first urban frame for large-footed skaters seeking a big wheel setup that is properly suited for the size of their feet. We believe nobody should have to skate comically short frames on a size 47 boot, or be forced into a larger wheel size just to have a wheelbase that provides adequate stability.
This frame is also a good fit for any skater seeking a little extra length and stability over our regular Endless 90 frame.
As of 11/1/24 a new mk2 version of this frame is available.
Features
- Multiple setups: 4x90, 3x110
- Balanced Rocker for 4-wheel setups
- Flat configuration for 3x110 setup
- Compatible with bullet profile wheels only
- Recommended for all skill levels
- Recommended for boot sizes 42 (270 mm foot length) and above, and specifically for sizes 44-48
- Mounting: 150, 165, 180 mm
- Boot compatibility: Some boots may require modification or a washer between the frame and boot to allow clearance for new 110 mm wheels in the 3x110 setup: Adapt GT/GTS/GTO
- Note: on Adapt skates our frames are not optimally centered
- Not compatible with UFS boots (including FR Skates UFR)
- Wheelbase: 291 mm
- Brake compatibility:
- 4x90: Powerslide Urban Brake Size L (908058/3), Powerslide Road Hog Speed Brake (907005),
- 3x110: Powerslide Megacruiser Brake (907029) - may require modification
- One frame set includes: 2 frames and 8 axles
- CNC-machined from 6061-T6 aluminum
- Weight = 310 grams, without spacers and axles
- Patent Pending
Urban Camo design copyright 2021 Endless Blading LLC and Rollerbalding, LLC.
Shipping info
Shipping info
FREE shipping on orders over $300 (excluding skates).
New orders will ship in 2-4 business days when in stock. If out of stock in our store please check with our dealers who often have them available.
Need help choosing a frame?
Need help choosing a frame?
Have a question?
Have a question?
Check out our FAQ and Help page. We have an extensive knowledge base of help articles. You can also click the help icon in the lower right hand corner of this page.
Frame Lock compatible
Frame Lock compatible
This frame is compatible with our patent pending Frame Locks.
Boot compatibility
Boot compatibility
There are three primary mounting standards: 165 raised heel, UFS, and Trinity. It's important to know which mounting interface your boot has so that you can choose the correct Endless frame. These three mounting types are not interchangeable with one another. In other words you cannot fit a Trinity frame to a UFS boot, nor can you fit a UFS frame to a 165 raised heel boot.
Brake compatibility
Brake compatibility
We recommend the following Powerslide Urban Brakes:
Endless 80 / 84
- 4x80: Powerslide Urban Brake Size S (908058/1)
- 4x84: Powerslide Urban Brake Size M (908058/2)
- 3x100: Powerslide Urban Brake Size L (908058/3)
Endless 90 / 90 LR
- 4x90: Powerslide Urban Brake Size M (908058/2) - may require modification
- 3x110 Powerslide Urban Brake Size L (908058/3), FR Skates 3W Brake (FRBRK-3W)
Endless 100 - not recommended with brakes
- 4x100: Powerslide Urban Brake Size L (908058/3)
- 3x110: none
Mercury finish info
Mercury finish info
The mirror finish on Mercury frames can reveal fingerprints, tiny scratches, marks, and nicks. During normal handling and skating the frame may get scratched. Wiping dust and debris off of the frame can also put micro-scratches in the finish. Brand new Mercury frames may have micro-scratches from handling during manufacturing. There is no warranty on the finish of this product.
Setup guide
Setup guide
Design protection / Patents
Design protection / Patents
This design of this frame may be protected by registered or pending design rights in one or more regions.
Need help choosing a frame?
Take our frame quiz to get a personalized recommendation based on your foot size, skill level, and skating style and preferences.
