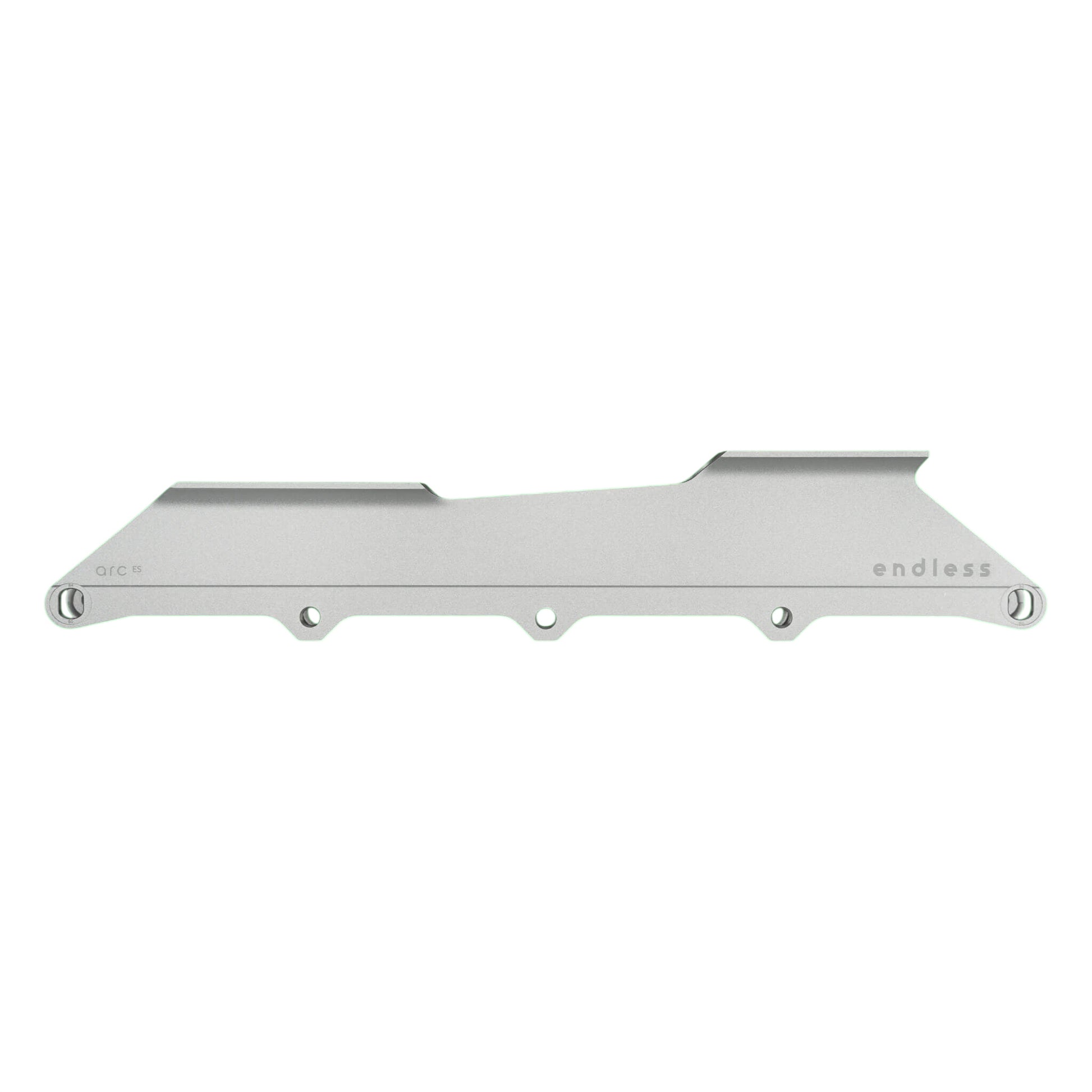

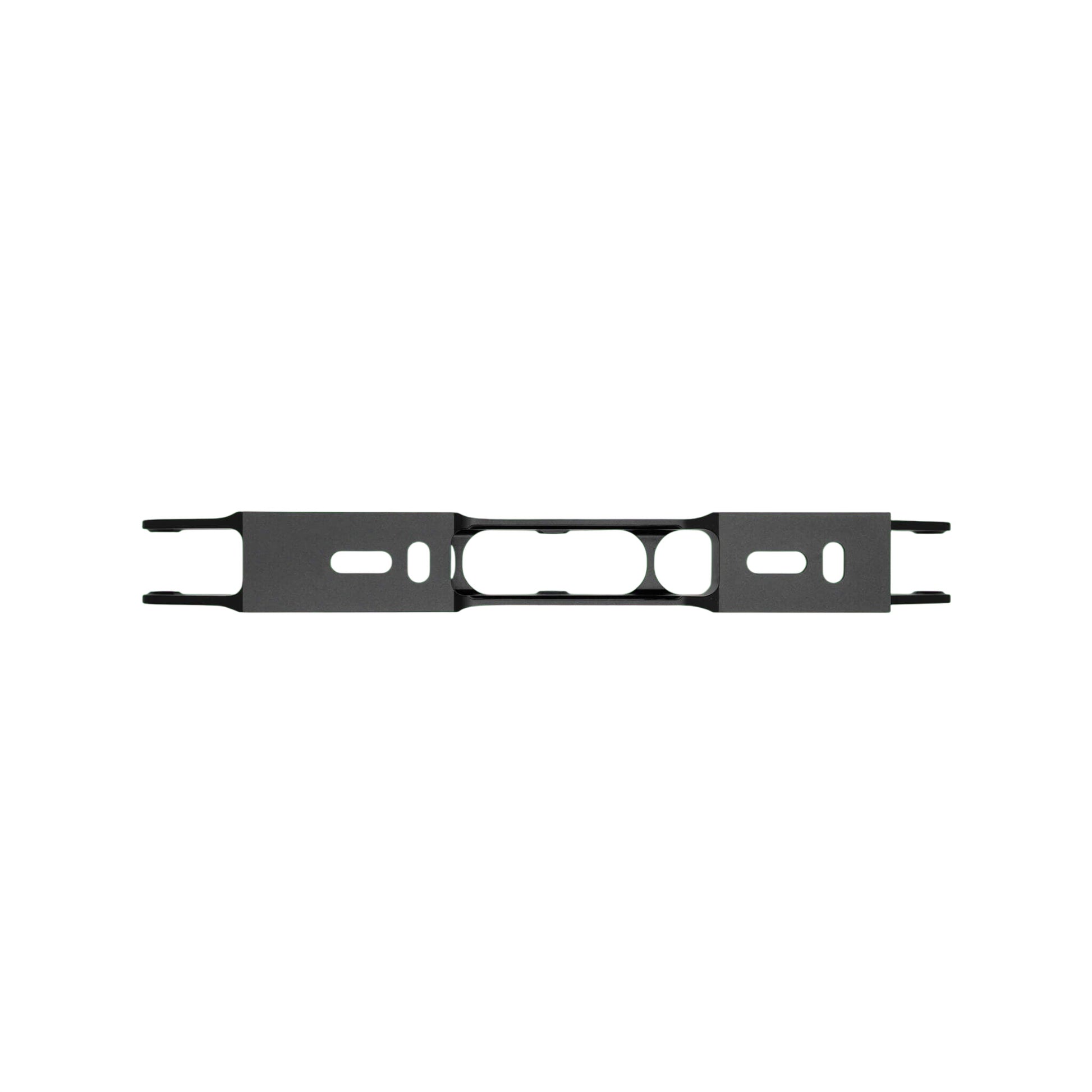

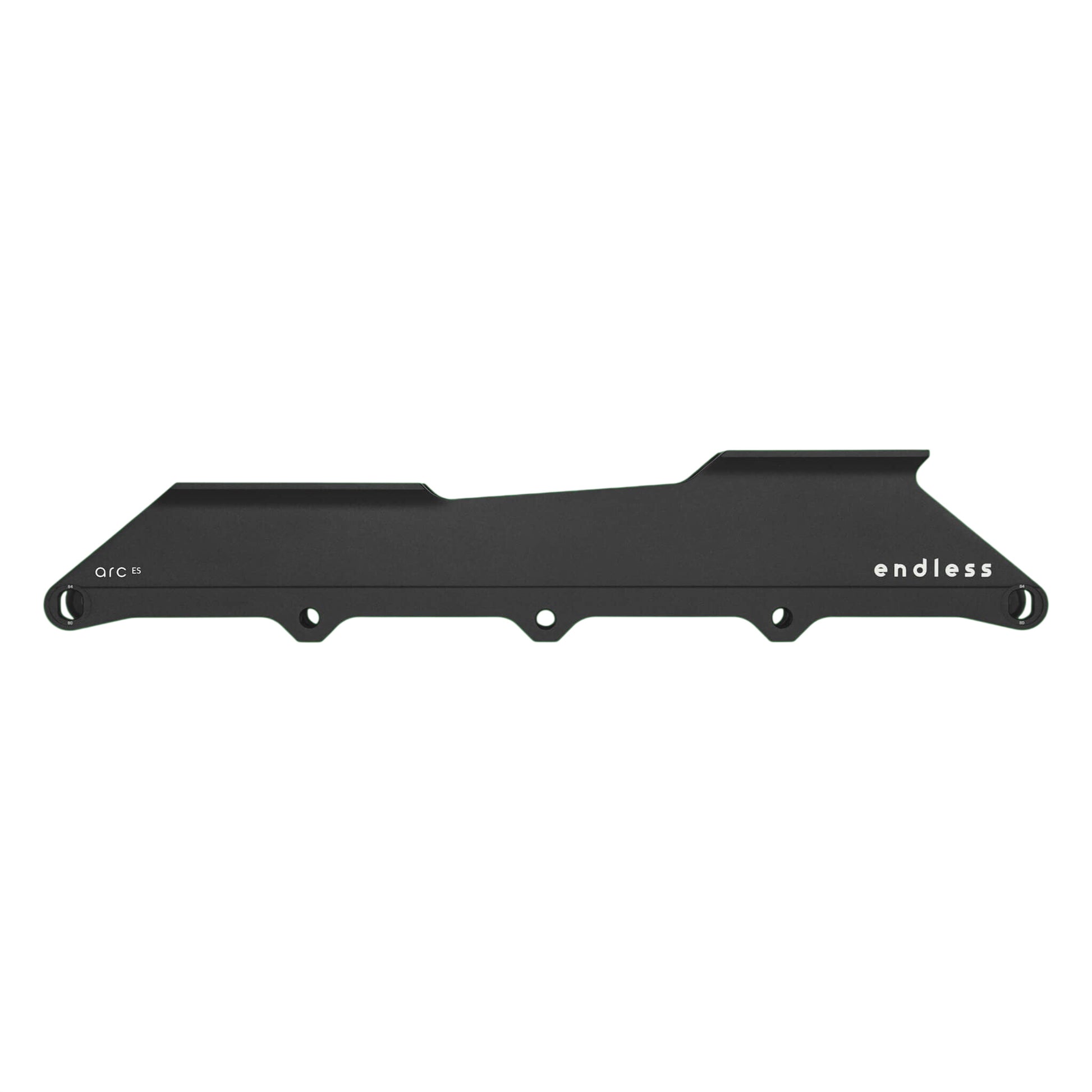

Endless Arc ES 165 Frame

Endless Arc ES 165 Frame

Regular price $259.00 USD
Regular price Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

This frame requires a 165 Raised Heel boot.

It is NOT compatible with UFS or Powerslide Trinity boots. Not sure? Click here.

The Endless Arc ES 165 Frame is a precision machined, multi-setup 5-wheel frame specifically designed for skaters with larger foot sizes seeking the highest level of performance for expressive flatland styles that rely heavily upon precise edge transitions and ninja-like swivel moves.  Through a meticulous development and testing process we have engineered a frame that we believe delivers an innovative level of 5-wheel performance for all 165 mount boots.  An exceptionally rigid structural design brings new levels of responsiveness, speed, and acceleration that enhance the execution of moves and open up limitless skating expression...and most importantly, fun!

For the best skating performance and movement tempo, our 5-wheel frames should be chosen based on boot size as noted on the Features tab.

Features
  • Multiple setups for maximum wheel compatibility and performance tuning
    • 80 or 84 mm outer wheels + 3x 76 mm inner wheels
    • For the best experience do NOT mix round and bullet wheel profiles.  Matched sets of Hydrogen or Street Invader wheels can be purchased in our store.
  • Arc Rocker
    • Optimized for responsiveness, speed, acceleration, and precise control of movement
      • Higher performing alternative to 5x80 options
    • Recommended for Intermediate and Advanced skill levels
    • Recommended for boot sizes 44-47
    • Mounting: 165, 180 mm
      • Longitudinal mounting slots allow for optimized front-back alignment with Rollerblade and Adapt skates
      • For centered mounting on FR/Seba boots and Micro MT Plus: push frame forward (bolt sits towards rear of slot)
      • For centered mounting on Rollerblade or Adapt boots: push frame backwards (bolt sits towards middle of slot)
      • Lateral mounting slots allow for lateral adjustment on 7-hole mounts only, like FR1/2/3.
      • Wheelbase: 324 mm
      • Pivot spacing: 81 mm
      • Brake compatibility: not recommended for use with a brake
      • One frame set includes: 2 frames and axle hardware
      • CNC-machined from 6061-T6 aluminum
      • Weight = 377 grams, without spacers and axles



      Check out the Arc Landing Page to learn more about the design.

      Check out the Arc | Arc ES Setup Guide for mounting and confirguation help.



      Shipping info

      New orders will ship in 3-5 business days when in stock. If out of stock in our store please check with our dealers who often have them available.

      Need help choosing a frame?

      Have a question?

      Check out our FAQ and Help page. We have an extensive knowledge base of help articles. You can also click the help icon in the lower right hand corner of this page.

      Pre-order info

      If this product is allowing pre-orders, visit this this link to learn about how our pre-orders work. We don't require any payment up front and only take payment when shipping.

      Frame Lock compatible

      This frame is compatible with our patent pending Frame Locks.

      Learn more

      Boot compatibility

      There are three primary mounting standards: 165 raised heel, UFS, and Trinity. It's important to know which mounting interface your boot has so that you can choose the correct Endless frame. These three mounting types are not interchangeable with one another. In other words you cannot fit a Trinity frame to a UFS boot, nor can you fit a UFS frame to a 165 raised heel boot.

      Learn more

      Brake compatibility

      Brakes are not compatible with our Arc 5-wheel frames.
