Endless Arc ES Trinity Frame
Endless Arc ES Trinity Frame
In stock
This frame requires a TRINITY boot.
This frame requires a TRINITY boot.
It is NOT compatible with 165/180 or UFS boots. Not sure? Click here.
Couldn't load pickup availability
Have a question?
Have a question?
Check out our FAQ and Help page. We have an extensive knowledge base of help articles. You can also click the help icon in the lower right hand corner of this page.
Mercury finish info
Mercury finish info
The mirror finish on Mercury frames can reveal fingerprints, tiny scratches, marks, and nicks. During normal handling and skating the frame may get scratched. Wiping dust and debris off of the frame can also put micro-scratches in the finish. Brand new Mercury frames may have micro-scratches from handling during manufacturing. There is no warranty on the finish of this product.
Setup guide
Setup guide
Design protection / Patents
Design protection / Patents
This design of this frame may be protected by registered or pending design rights in one or more regions.
Share

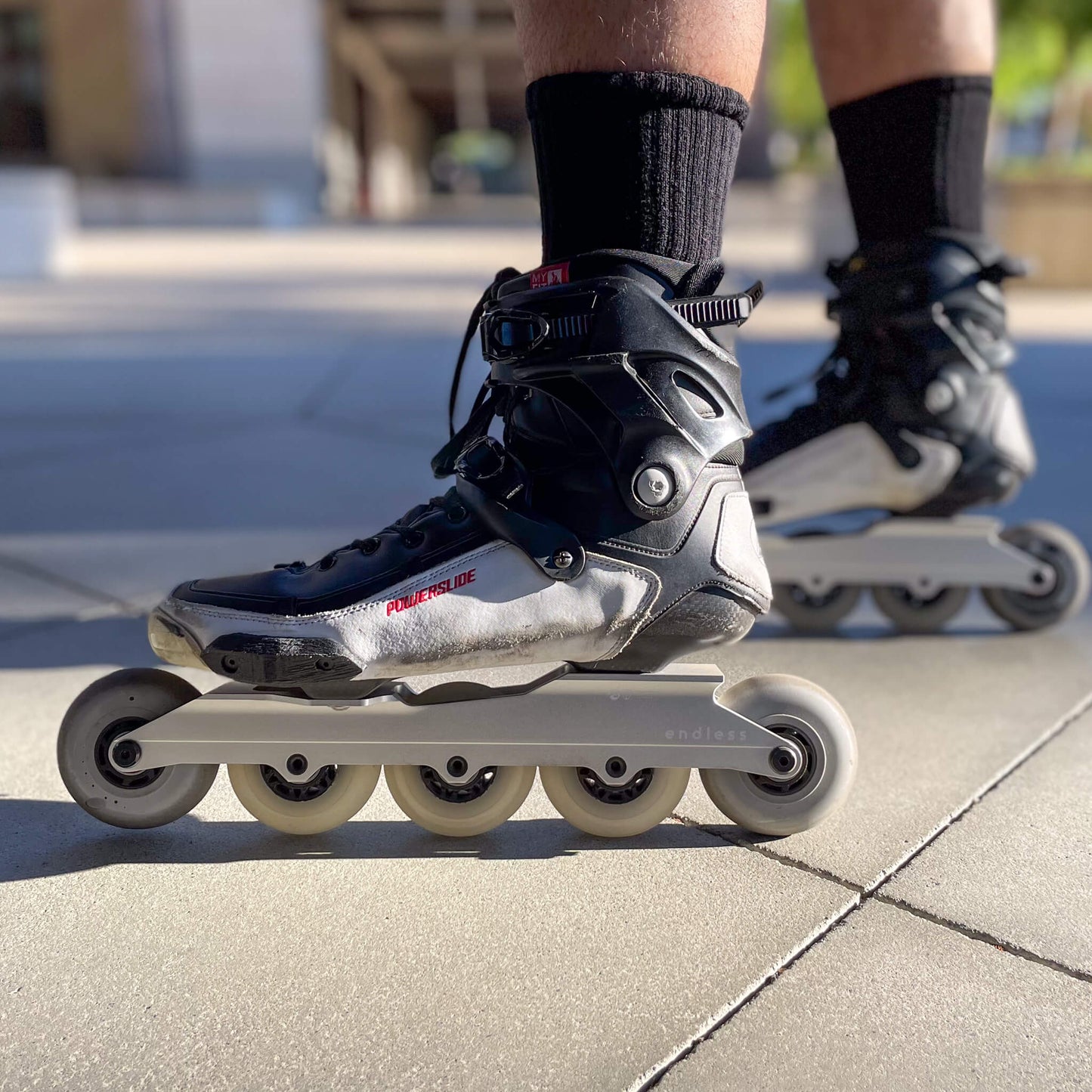

The Endless Arc ES Trinity Frame is a precision machined, multi-setup 5-wheel frame specifically designed for skaters with larger foot sizes seeking the highest level of performance for expressive flatland styles that rely heavily upon precise edge transitions and ninja-like swivel moves. Through a meticulous development and testing process we have engineered a frame that we believe delivers an innovative level of 5-wheel performance for all TRINITY mount boots. An exceptionally rigid structural design brings new levels of responsiveness, speed, and acceleration that enhance the execution of moves and open up limitless skating expression...and most importantly, fun!
For the best skating performance and movement tempo, our 5-wheel frames should be chosen based on boot size as noted on the Features tab.
Features
- Multiple setups for maximum wheel compatibility and performance tuning
- 80 or 84 mm outer wheels + 3x 76 mm inner wheels
- For the best experience do NOT mix round and bullet wheel profiles. Matched sets of wheels can be purchased in our store.
- Arc Rocker
- Enhanced levels of rocker possible when using 80 mm wheels and optional Arc Deluxe Rocker Axles (silver)
- Optimized for game-changing responsiveness, speed, acceleration, and precise control of movement
- Higher performing alternative to 5x80 options
- Recommended for Intermediate and Advanced skill levels
- Recommended for boot sizes 44-47
- For size 39-43 we recommend the standard version of this frame
- For size 38 and below we recommend Arc CS
- For size 39-43 we recommend the standard version of this frame
Check out the Arc Landing Page to learn more about the design.
Check out the Arc | Arc ES Setup Guide for mounting and confirguation help.
Specs
- Mounting: TRINITY 3-point
- Wheelbase: 324 mm
- Pivot spacing: 81 mm
- Brake compatibility: not recommended for use with a brake
- One frame set includes: 2 frames and axle hardware
- CNC-machined from 6061-T6 aluminum
- Weight = 317 grams, without spacers and axles
Performance Driven Expression Platform
Learn more about the innovative design of our Arc 5-wheel frames
